Garage door control

Assuming you have a regular garage door opener and want to upgrade it with smart capabilities. For example to open and close the garage door from your smart phone, check the state if it is open or closed, and get a notification when it opens when you are away. Just add an ESP node with a relay and some magnet sensors and program it to do that.

Work in progress below.

Hardware

This project is based on the following components:

  • Lolin D1 mini
  • USB charger and cable
  • Relay module 5 V (link External link)
  • Magnet sensor, 2 sets (link External link)
  • Resistor 100 ohm, 2 pieces
  • Resistor 10k ohm, 2 pieces
  • Signal cable with 4 leads (link External link)

Programming of the ESP node is done with ESPHome.

Wiring

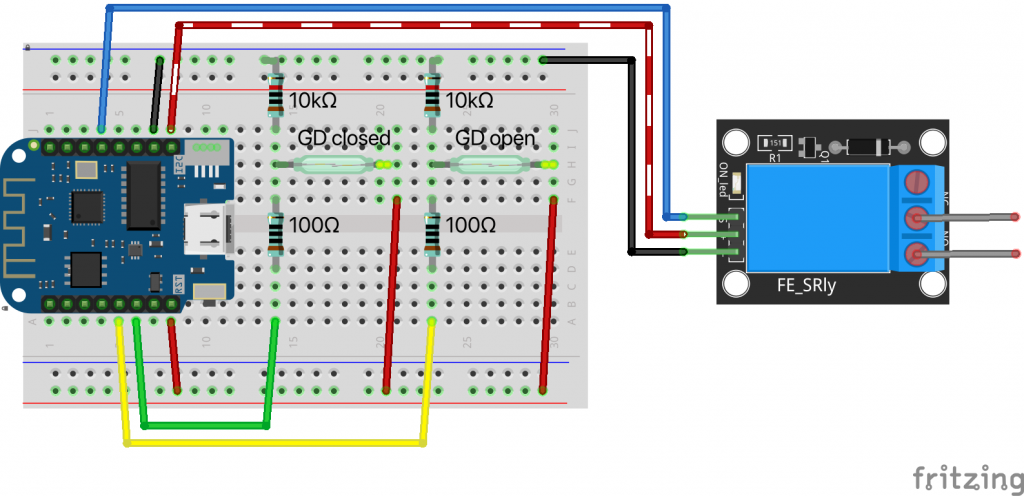

The components are connected to the ESP node according to the following wiring diagram.

ESP-node wired as garage door control with end stop sensors.

Programming

Adapt the following program to suit your installation and upload to the ESP node. Replace the listed strings in the code to suit your specific setup:

  • NODE_NAME
  • NODE_NAME_API_KEY
  • NODE_NAME_OTA_PASSWORD
  • WIFI_NAME
  • WIFI_PASSWORD
  • NODE_NAME_FALLBACK_WIFI
  • NODE_NAME_FALLBACK_PASSWORD
# Garage Door Control
# Version 0.1
esphome:
  name: NODE_NAME
  platform: ESP8266
  board: d1_mini

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "NODE_NAME_API_KEY"

# Enable Over the Air updates
ota:
  - platform: esphome
    password: "NODE_NAME_OTA_PASSWORD"

# Configure primary and fallback WiFi
wifi:
  ssid: "WIFI_NAME"
  password: "WIFI_PASSWORD"
  ap:
    ssid: "NODE_NAME_FALLBACK_WIFI"
    password: "NODE_NAME_FALLBACK_PASSWORD"

captive_portal:

# Web server settings
web_server:
  port: 80
  ota: false

# Remote board switches
switch:
  - platform: restart
    name: "NODE_NAME reboot node"
#  - platform: shutdown
#    name: "NODE_NAME shutdown node"
# Relay definition
  - platform: gpio
    pin:
      number: GPIO4
      mode:
        output: true
    id: gd_relay
    name: "Garage Door Relay"
    icon: "mdi:gate"
    on_turn_on:
    - delay: 800ms
    - switch.turn_off: gd_relay

# System sensors
text_sensor:
  - platform: wifi_info
    ip_address:
      name: "NODE_NAME IP"
      icon: "mdi:ip-network-outline"
    mac_address:
      name: "NODE_NAME MAC"
      icon: "mdi:network-outline"

# End stop definitions
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO12
      mode:
        input: true
     id: gd_open_sensor
    name: "Garage Door Open"
    filters:
      - delayed_on_off: 400ms
  - platform: gpio
    pin:
      number: GPIO13
      mode:
        input: true
     id: gd_closed_sensor
    name: "Garage Door Closed"
    filters:
      - delayed_on_off: 400ms

Integration

Finally adapt the following to integrate the new smart garage door opener with your Home Assistant installation.
